 Posted: Sun Feb 07, 2010 8:06 pm Post subject: Bump stops?? |
 |
|
What bump stops should I run??
Keep in mind that I'm on a budget. I only plan on running about 4 or 5 inches of up travel, so I need a pump stop that will stop the travel but still give enough to take the shock out. I plan on running a single rate spring like a TJ or bronco coil so I can just run a really stiff second spring. |
|
| Back to top |
|
 |
PEAKABOO
Core member
Joined: Jun 29, 2006
Posts: 1484
Location: The Liquor Store
|
| Posted: Mon Feb 08, 2010 1:59 am Post subject: |
|
|
Not sure I understand, are you saying you are going to run a spring like for a bronco or TJ? Stock spring or lift spring? If you are wanting a cheap bump stop I can tell you from experience that the solid stops work but you can damn sure tell when you hit them. I have very little up travel and my rear stops take a beating when I am hauling ass (always  )

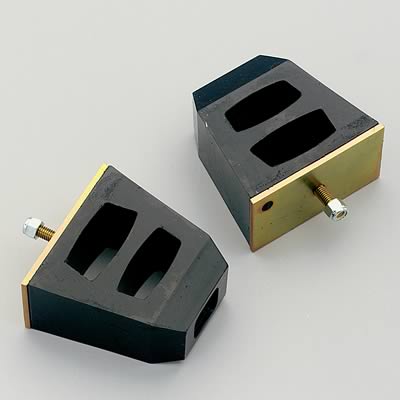

I use the stops on the rear that look like devo hats.
They work good but as I said you can tell when you are on them.
I have these at the house that I am going to put in there place to see how they work and last.
You can also use the bump stops that go on the shock shaft but I always felt that those just wear out shock bushings faster and I have seen them split.[/img]
_________________
-=STOLI-CREW=-
"You hide it, We divide it" |
|
| Back to top |
|
|
sanchez
Member
Joined: Feb 24, 2009
Posts: 343
Location: Monroe La
|
| Posted: Mon Feb 08, 2010 9:08 am Post subject: |
|
|
If you are looking for a salvage yard part, I use rear bump stops off a ram 2500. I think thats what they came off. They look simalar to the ones in Peakaboo bottom pic except they dont have the side holes and they have two bolts.
_________________
84 CJ-7 Rockwells 44" tires 400 cid propane
97 Jeep XJ Dana 60 / 14 bolt 40" tires 4.0 fuel injected
82 Suburban Rockwells 18.4-26 tractor tires 350 cid fuel injected |
|
| Back to top |
|
|
AcProKeith
Core member
Joined: Jan 29, 2008
Posts: 673
Location: Cedar Hill.. only 207 miles from Clayton
|
| Posted: Mon Feb 08, 2010 10:59 am Post subject: |
|
|
| PEAKABOO wrote: |
[/img] |
I have those. They are pretty soft but the metal bends unless supported all the way across. Mine are mounted to a 2" square tube, and bent around it. If you support them all the way across they should be fine. Also look at Timbren bump stops. Search pirate, tons of tech. They come in any rate, from zuki to dump truck (they were designed for heavy equipment originally). They also have different lengths. There are so many different ones its hard to choose. Kinda like picking coil over springs. They have been described as a poor mans air bump. Im gonna get a set when I figure out what I need. I set my junk at 6" up travel, but the springs have sagged and I now have 4".
The ones in the pic above took an accidental jump off of a 4' or so concrete ledge at about 40. I gassed it but didnt have enough power (N20 soon!) to bring the nose up. When it landed it see-sawed back and forth a little bit, but took it and we kept going. One word of caution: they dont stop until a good inch past where they look like they should. My tie rod kissed my oil pan...
Anybody here have real world exp with the Timbrens?
_________________
85 Diet K5 truggy on 43's, soon to have spray.
94 Chevy 1Ton tow rig: 454, Nv4500/241 on 22's/35's
05 Yamaha 660r raptor
Need Heat or A/C work? http://allenhvac.net/
My Rollover Video- http://www.youtube.com/watch?v=7zYWH1j0Gbg |
|
| Back to top |
|
|
T Pane
Core member
Joined: Apr 18, 2007
Posts: 1346
Location: Richardson, TX
|
| Posted: Mon Feb 08, 2010 12:03 pm Post subject: |
|
|
| PEAKABOO wrote: | Not sure I understand, are you saying you are going to run a spring like for a bronco or TJ? Stock spring or lift spring? If you are wanting a cheap bump stop I can tell you from experience that the
I have these at the house that I am going to put in there place to see how they work and last.
|
Yes I'll be running a lift spring off a TJ or Bronco. I don't know what lift yet. I'll have to see what I need to get the necessary lift. My only concern is that if I run the 4" tall bump that will compress 3 inches under extreme conditions that only leaves me with 2" of up travel before it touches. Are they soft enough to still give while the suspension is just flexing? |
|
